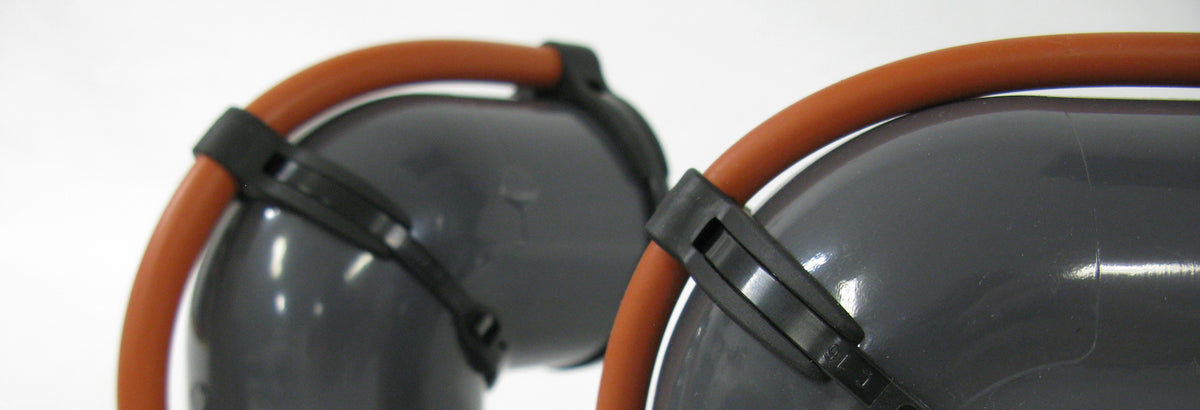

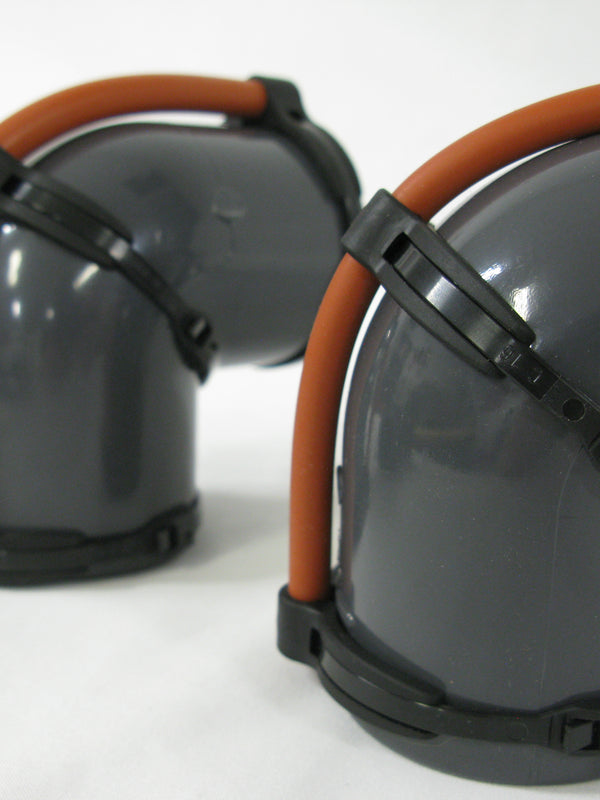

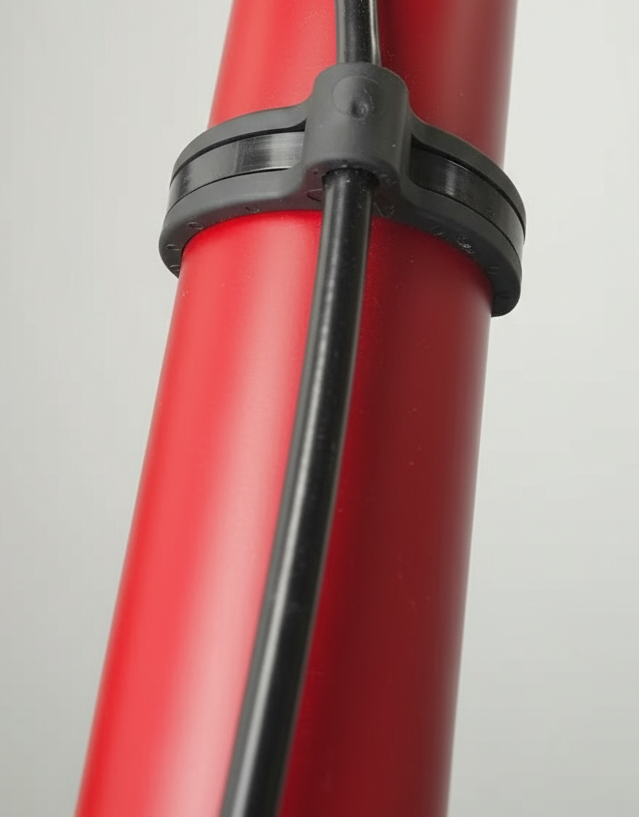

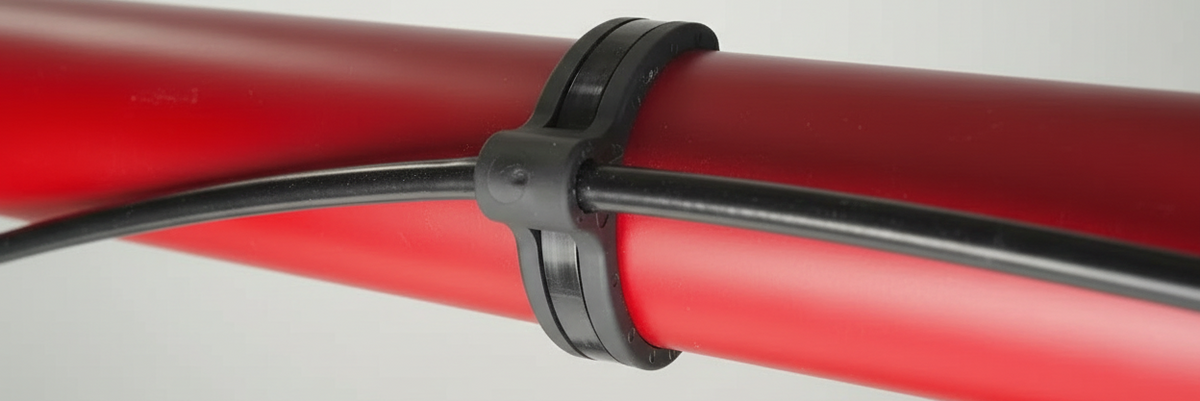

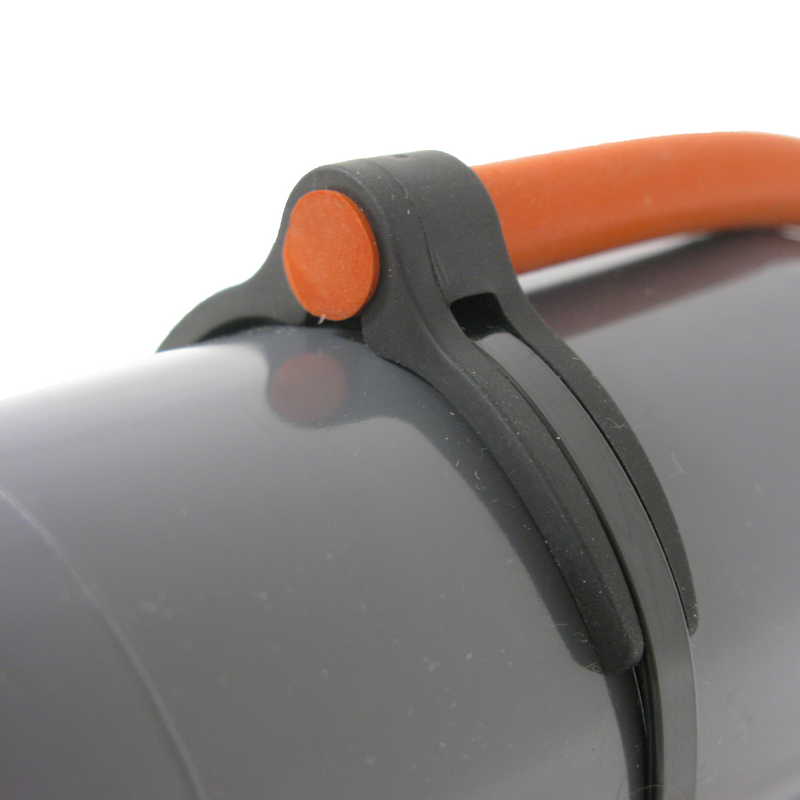

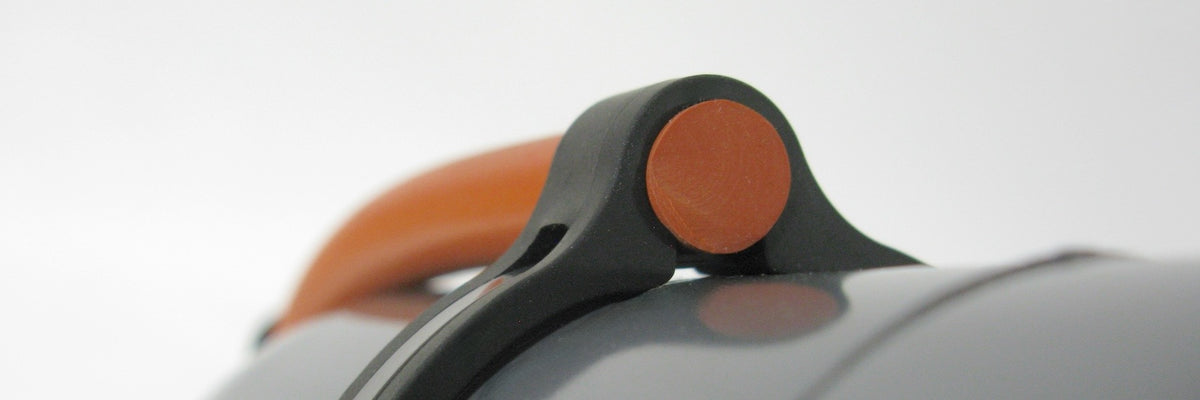

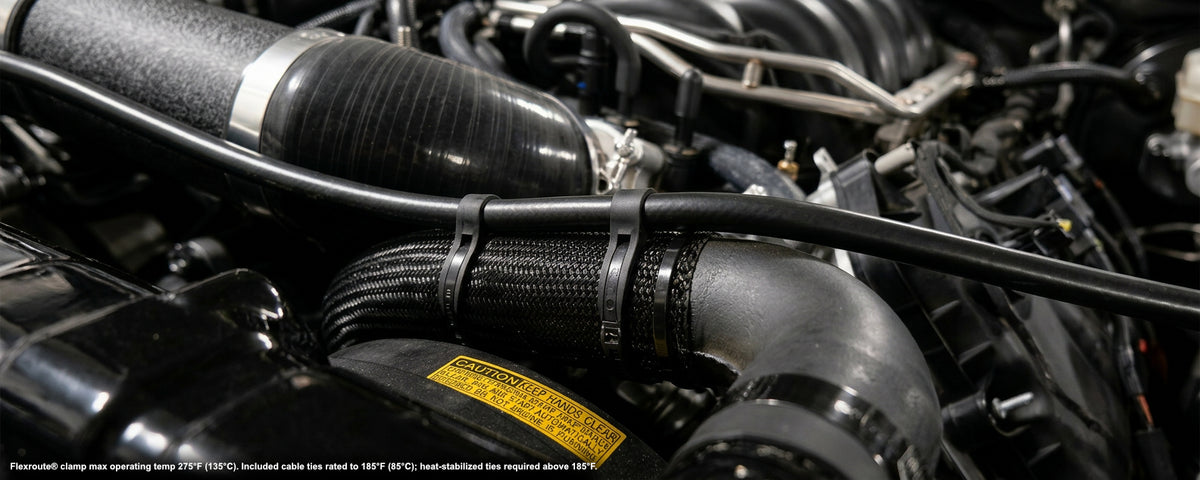

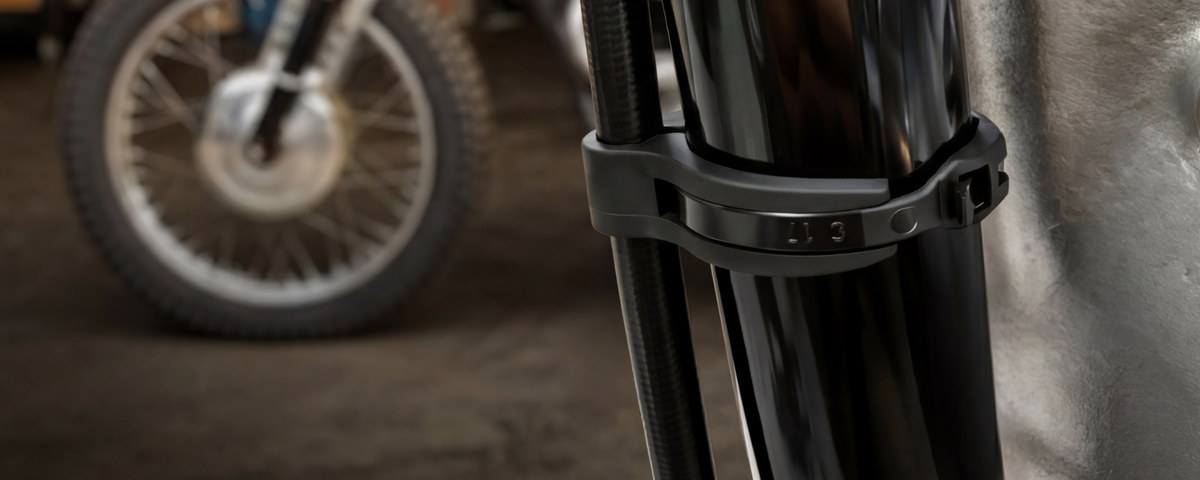

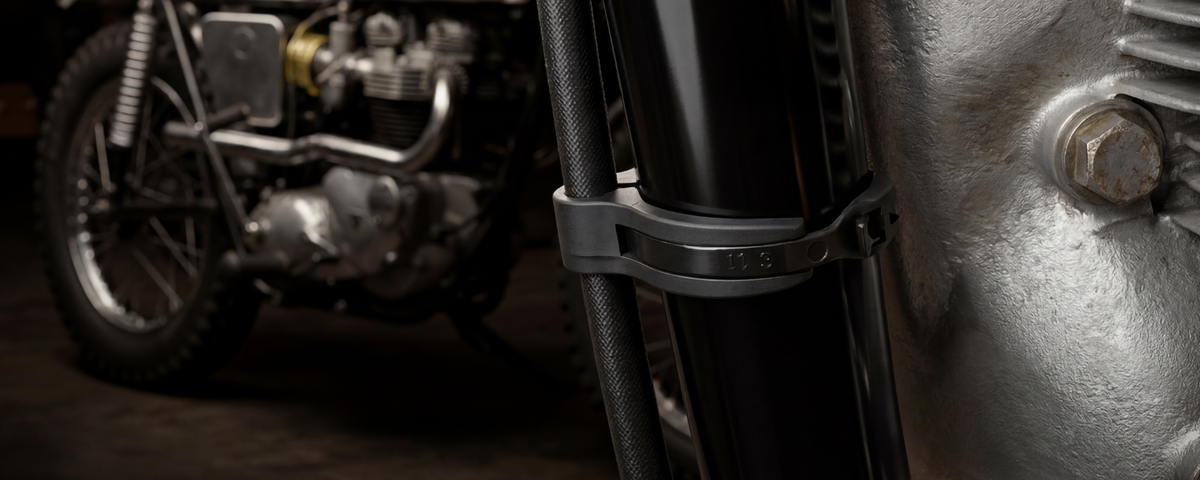

The Flexroute® cable clamp forms around the cable and frame, providing uniform traction and long lasting protection cable ties just can't accomplish on their own.

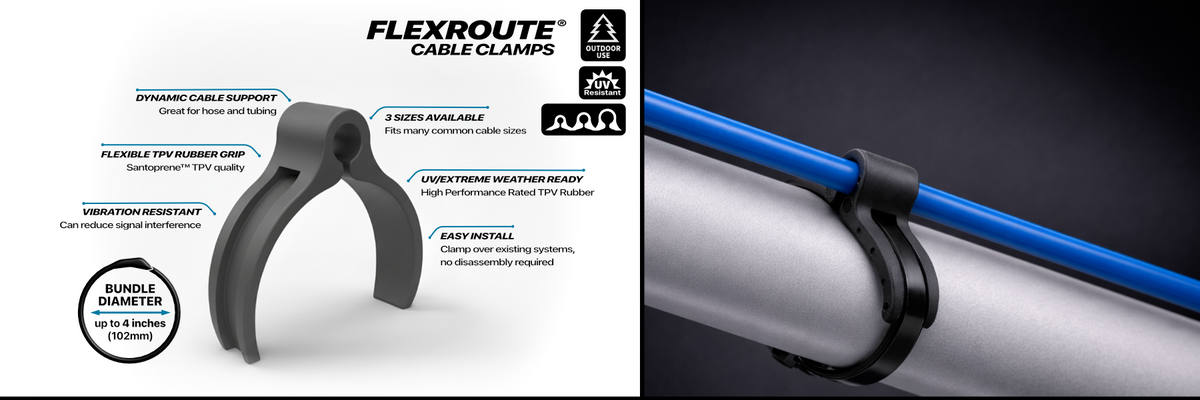

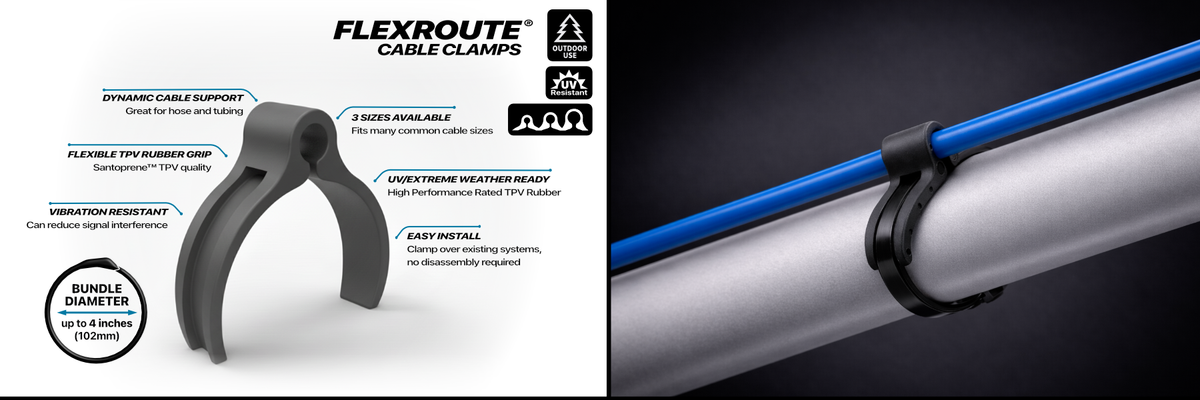

Flexroute® Features:

• Forms and grips to frame surface
• Protects frame from abrasion
• Prevents crushed cabling and hose
• Absorbs shock & vibration
• Reduces signal interference
• Easy installation & removal

1) Snap over the cable & form to the frame

2) Slide the cable tie through the channel under the clamp head

3) Tension cable tie by hand or with a tension tool: Standard 5-8

For product use and safety information visit our Flexroute® Product Use page.  Please read prior to installation.

Flexroute® is used across many industries. Here are just a few examples:

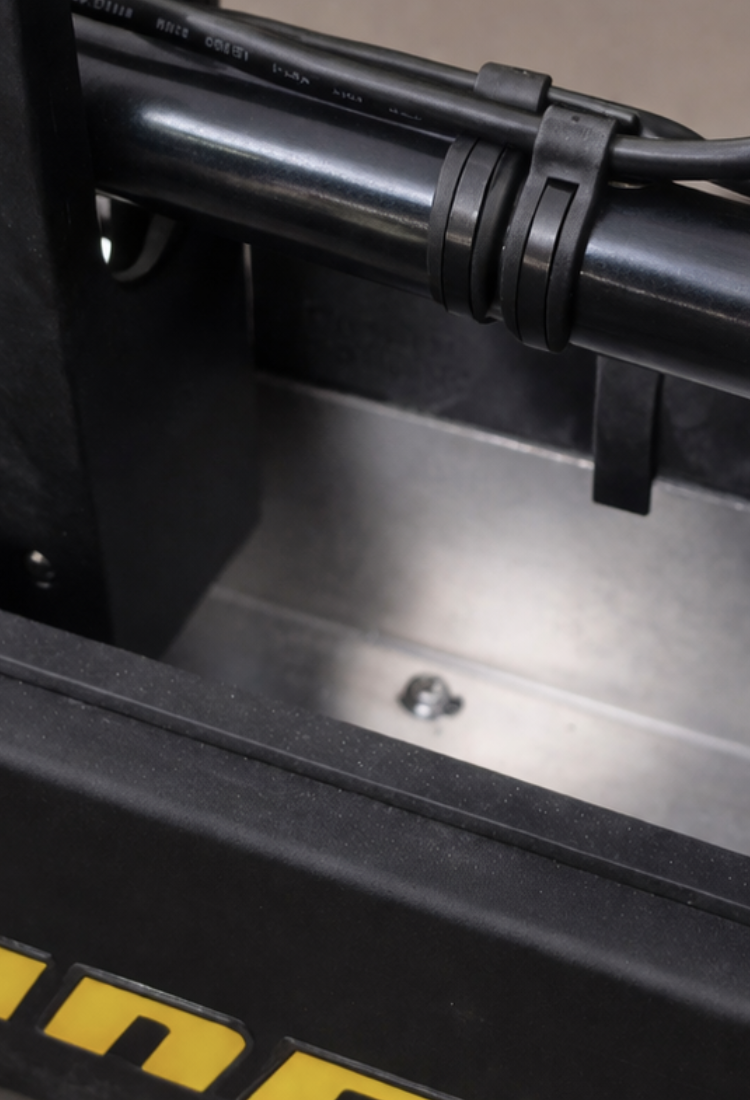

• Marine sonar transducer cables
• Agricultural livestock cooling systems
• Off-road UTV/SXS
• Tactical armored security vehicles
• Module power systems for data centers
• Mobile satellite communications
• And more!

Available in three sizes to accommodate a range of common cable and hose diameters.

⦿ Small — 3/16"–1/4" (4.8–6.5 mm)
⦿ Medium — 9/32"–3/8" (7.1–9.5 mm)
⦿ Large — 3/8"–1/2" (9.5–12.7 mm)

Each Flexroute® clamp includes a 14" Cobra® low-profile cable tie for mounting to frames up to 4" (120 mm) diameter.

* For smaller frame diameters, trim the clamp arms to the required length before installation.

The Flexroute® cable clamp attaches using the high quality Cobra® Low Profile cable tie designed for safety and strength through it's inline design.

⦿ Made from US sourced Nylon 6/6.

• Manufactured in an ISO 13485 certified facility with strict quality control and traceability standards.
• Made from rugged impact resistant rubber used in power tool grips, weather seals and high quality coolant hose.
• Designed to outperform in extreme temperatures and environments.
• Excellent UV, ozone, weather and chemical resistance.
• Meets UL 94V-0 flame-retardant requirements.

Made in the USA
